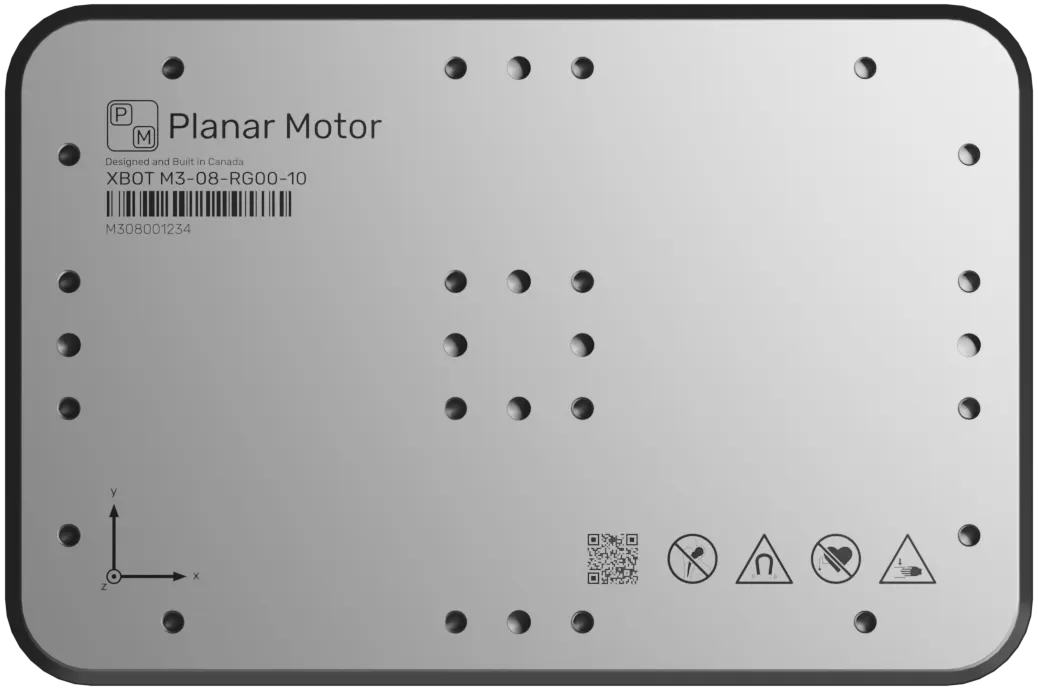

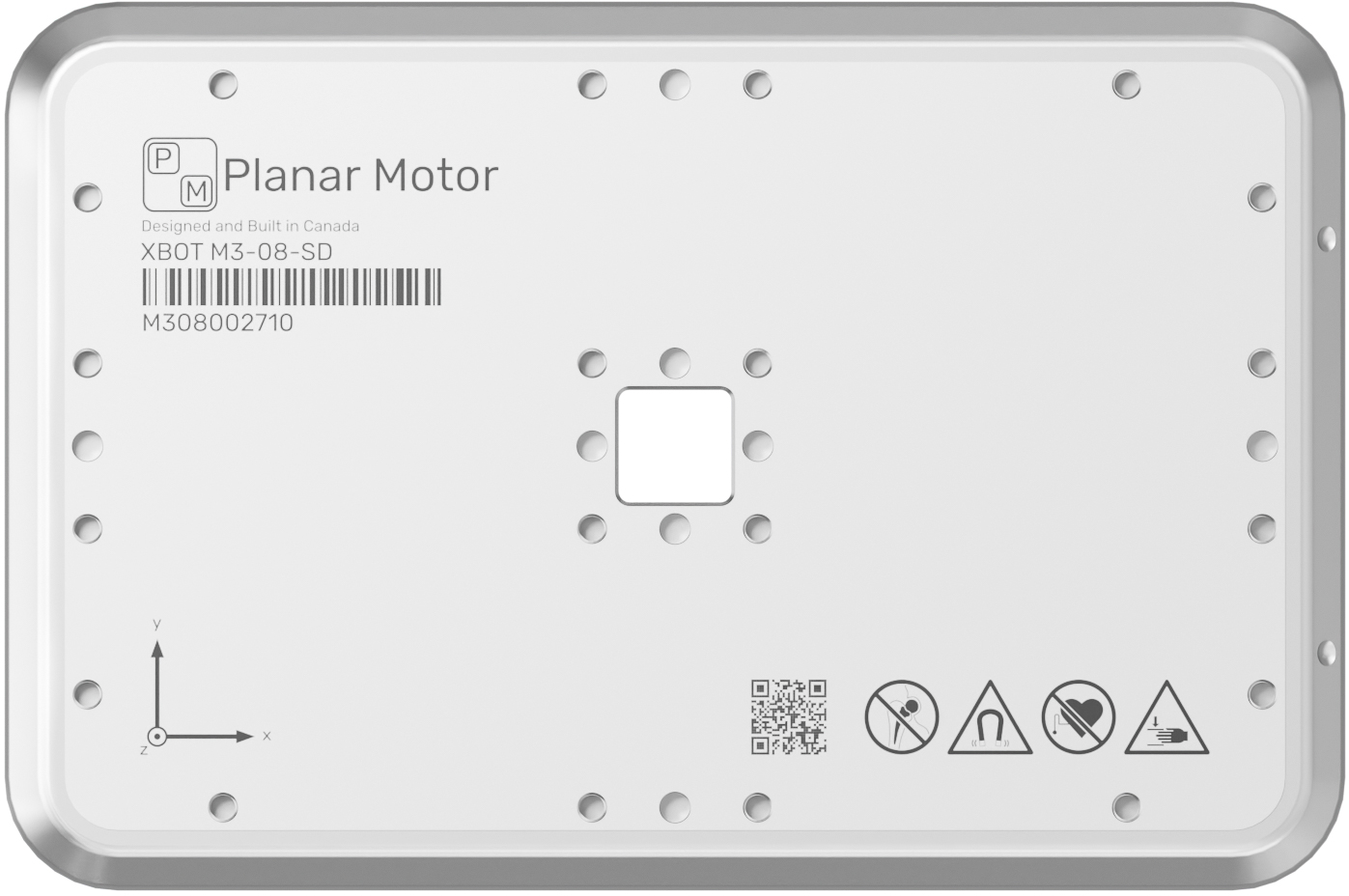

XBots (movers) are magnetically levitated above the surface of Flyways. They rely on incredibly strong directional permanent magnets which focus the magnetic field beneath them and minimize it above the XBot, creating a safe mounting surface for products and accessories. With multiple threaded mounting holes and dowel pin locations, there are many possibilities for fixturing. M3 XBots are available in sizes starting at 120mm x 120mm.
11 different maximum payloads to suit your process.
specs/downloads120 x 120 x 10mm
0.6 kg payload
180 x 120 x 10mm
1.0 kg payload
240 x 120 x 10mm
1.5 kg payload
180 x 180 x 10mm
2.5 kg payload
210 x 210 x 10mm
3.5 kg payload
240 x 240 x 10mm
5.0 kg payload
330 x 210 x 11mm
6.0 kg payload
300 x 300 x 11mm
8.0 kg payload
330 x 330 x 11mm
10.0 kg payload
Fully encapsulated in 300-series stainless steel to provide significantly improved durability in comparison with standard variants. Ideally suited for harsh industrial environment.
Additional sizes available upon request.
120 x 120 x 8.5mm
0.6 kg payload
180 x 120 x 8.5mm
1.0 kg payload
240 x 120 x 8.5mm
1.5 kg payload
180 x 180 x 8.5mm
2.5 kg payload
210 x 210 x 8.5mm
3.5 kg payload
240 x 240 x 8.5mm
5.0 kg payload
Fully encapsulated in 316L stainless steel for VHP resistance.
Additional sizes available upon request.
120 x 120 x 8.5mm
0.6 kg payload
180 x 120 x 8.5mm
1.0 kg payload
240 x 120 x 8.5mm
1.5 kg payload
180 x 180 x 8.5mm
2.5 kg payload
210 x 210 x 8.5mm
3.5 kg payload
240 x 240 x 8.5mm
5.0 kg payload
Fully encapsulated in 316L stainless steel with autoclave compatibility.
Additional sizes available upon request.
120 x 120 x 10mm
0.6 kg payload
180 x 120 x 10mm
1.0 kg payload
240 x 120 x 10mm
1.5 kg payload
180 x 180 x 10mm
2.5 kg payload
210 x 210 x 10mm
3.5 kg payload
240 x 240 x 10mm
5.0 kg payload
Featuring a specialized superalloy housing designed to resist some of the harshest chemical environments, including high-temperature mineral acids, corrosive halogens, organic compounds, and highly toxic gases.
Additional sizes available upon request.
120 x 120 x 8.5mm
0.6 kg payload
180 x 120 x 8.5mm
1.0 kg payload
240 x 120 x 8.5mm
1.5 kg payload
180 x 180 x 8.5mm
2.5 kg payload
210 x 210 x 8.5mm
3.5 kg payload
240 x 240 x 8.5mm
5.0 kg payload
Flyways (stators) are the muscle of every Planar Motor System. They sense the position, orientation and unique ID of each XBot and generate magnetic fields to keep them levitated with their superior on-board controllers. Flyways are fully solid state with no moving parts meaning there is no maintenance required. Their modularity allows them be arranged into any conceivable layout to suit any solution.
Dimensions:
240 x 240 x 70 mm
Weight:
6.6 kg
Supply Voltage:
48V DC
Power Capacity:
6W @ Standby
600W @ Max
Washdown:
Yes
Cooling:
Passive / Liquid
Dimensions:
480 x 120 x 70 mm
Weight:
6.6 kg
Supply Voltage:
48V DC
Power Capacity:
6W @ Standby
600W @ Max
Washdown:
Yes
Cooling:
Passive / Liquid
