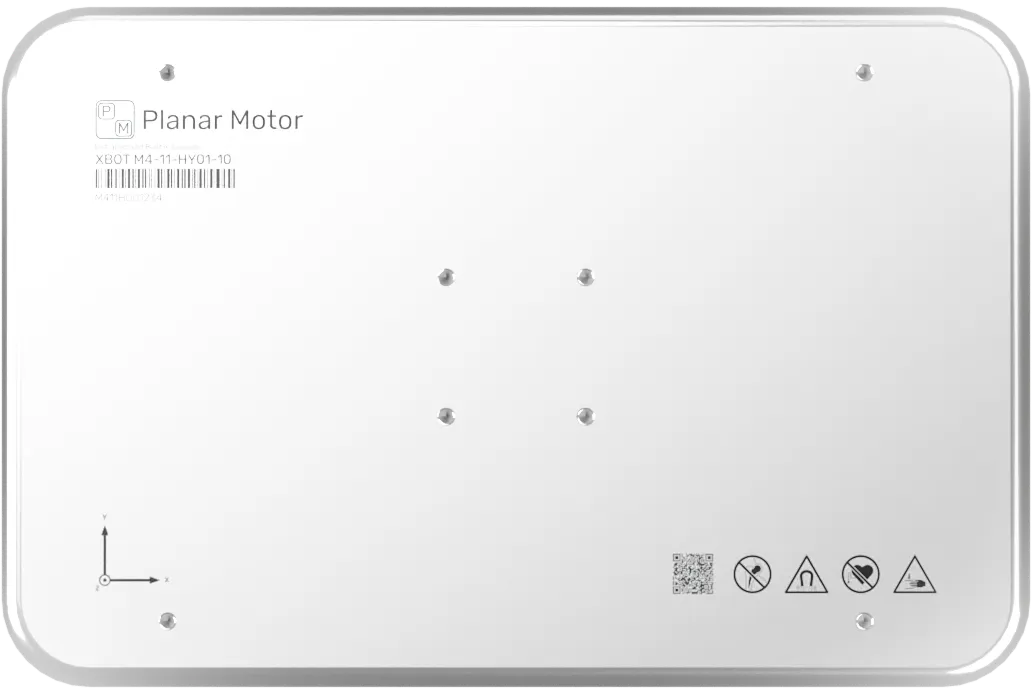

XBots (动子) 通过磁力悬浮在Flyways的表面之上。它们依赖于非常强的定向永久磁铁, 将磁场集中在其下方，并在XBot上方将磁场最小化, 从而形成一个安全的产品和配件的安装表面。配有多个螺纹安装孔和定位销位置, 提供了多种夹具可能性。M4 XBots的尺寸从160毫米 x 160毫米起, 并有更大尺寸可供选择。
10 different maximum payloads to suit your process.
specs/downloads160 x 160 x 12mm
1.8 kg payload
240 x 160 x 12mm
3.0 kg payload
320 x 160 x 12mm
4.2 kg payload
240 x 240 x 12mm
5.0 kg payload
280 x 280 x 12mm
7.0 kg payload
320 x 320 x 12mm
10.0 kg payload
440 x 280 x 13mm
12.0 kg payload
400 x 400 x 13mm
16.0 kg payload
440 x 440 x 13mm
20.0 kg payload
600 x 600 x 18mm
40.0 kg payload
Fully encapsulated in 316L stainless steel for IP69K rating and VHP resistance.
Additional sizes available upon request.
160 x 160 x 12mm
1.8 kg payload
240 x 160 x 12mm
3.0 kg payload
320 x 160 x 12mm
4.2 kg payload
240 x 240 x 12mm
5.0 kg payload
280 x 280 x 12 mm
7.0 kg payload
High temperature XBot variants can be autoclaved up to 150℃.
specs/downloads160 x 160 x 12mm
1.8 kg payload
240 x 160 x 12mm
3.0 kg payload
320 x 160 x 12mm
4.2 kg payload
240 x 240 x 12mm
5 kg payload
280 x 280 x 12mm
7.0 kg payload
